Strip Scale – Modular Digital Portable Weighbridge With Mobile Weigh for Measuring Weight

Description

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Strip Scale, Modular Portable Weighbridge, Digital Portable Weighbridge, Mobile Weighting Portable Weighbridge, Courier Portable Weighbridge, Logistics Modular Weighbridge, Factory Goods Weighting Portable Weighbridge, Digital Portable Weighbridge Use APP Measuring Weight, Portable Weighbridge Manufacturer, Strip Scale Supplier

Disadvantage of ordinary weighbridge: large in size; heavy self weight; inconvenient to move; only can be used in fixed area.
Advantage of D strip: compositive weigh module; lightweight material; no-wired design; can be taken to anywhere you need.

Put cartons or pallet on D1 strip – open its APP – get weight information on APP

Steps before billing:
1) Collect the goods from customer, but can’t finish billing process due to no proper weighing tool.
2) Take goods to freight yard, and weigh on fixed weigh bridge, then send freight billing information to customer.
3) Customers usually double the accuracy of freight, because the haven’t monitored the weighing process.

Good solution – portative D1 strip scale
Use STRIP SCALE to finish weighing process to customer’s face, and give freight bill immediately.
No dispute, better customer experience.

Strip Scale Specifications

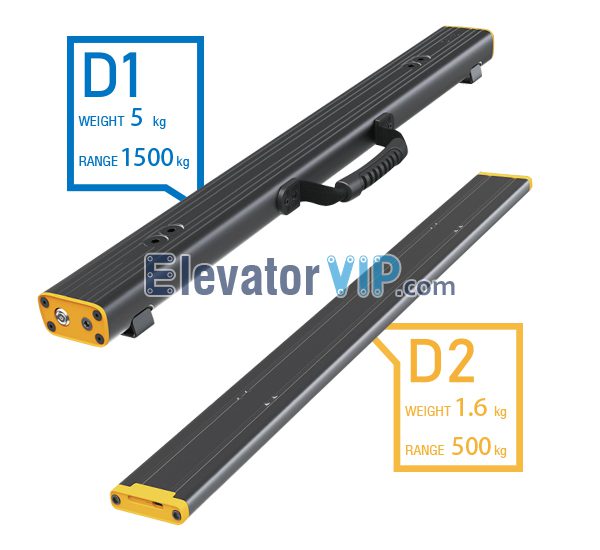

Model D1 D1-L D2
Parameter
Size 80cm*8cm*5.5cm 100cm*8cm*5.5cm 80cm*7cm*2.5cm
Weight 5kg 5.8kg 1.6kg
Material Structural aluminum
Built-in battery 3.7v 9000mAh 3.7v 9000mAh 3.7v 1500mAh
Weighing
Capacity (single) 1-1500kg 1-1500kg 1-500kg
Composite deviation 1‰①
Maximum working time 100hours② 100hours② 48hours②
Charging time 6hours③ 6hours③ 2hours③
Sensor
Material Alloy Steel Alloy Steel Aluminum alloy
Quantity 2
Working Temperature -20℃-65℃
APP
System Android 6.0 or more
Connection Bluetooth
Optional
Bluetooth printer Thermal label printer
Meter PDA

① The actual weighing accuracy may be affected by the ground conditions
②③ This data is the theoretical calculation value, and the actual data may have deviation



[1]. Term of payment: T/T, Western union, Paypal, L/C and so on.
[2]. Delivery time: About 5 working days against payment as generally.
[3]. Package: Standard carton packing
[4]. Shipping ways: Send by international express: UPS, DHL, TNT, Fedex, EMS, and etc, also can send by air and by sea.
[5]. Warranty time: One year from order just for the suitable problem.
[6]. Our services: Best service, good quality with competitive price
