Description

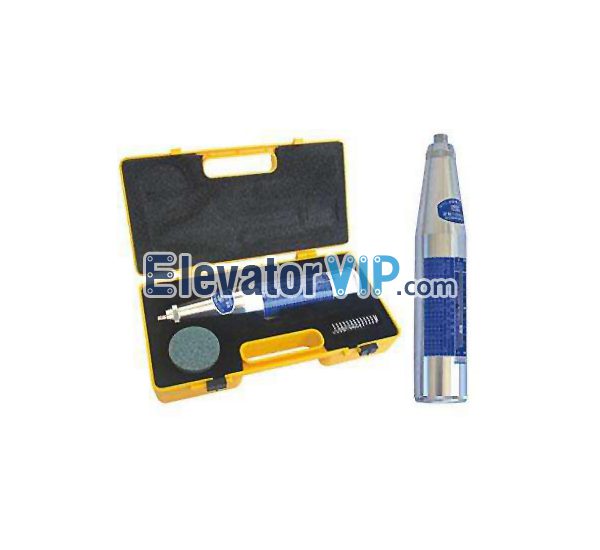

Concrete Rebound Hammer, Concrete Rebound Hammer Supplier, Cheap Concrete Rebound Hammer, Economical Concrete Strength Testing Tools, Strength Testing Device for Hardness Materials, Concrete Rebound Hammer for Elevator, XWE208H60
Specification of Concrete Rebound Hammer:
- Length of pointer: 20.0±0.2 (mm)
- Friction of pointer: 0.65±0.15 (N)
- Sphere semi-diameter at the end of the flip rod: 25±1.0 (mm)
- Rigidity of flip tensioned spring: 785.0±40.0 (N/m)
- Location of flip hammer’s hook release: “100”at the scale mark Work
- Length of flip tensioned spring: 61.5.0±0.3 (mm)
- Strike length of flip hammer: 75±0.3
- Hop location of the flip hammer: ‘0’ at the graduated scale fixed value of steel anvil: 80±2
- Weight: 2.6kg Packing
- Dimensions: 28.5*5.5 (cm)
